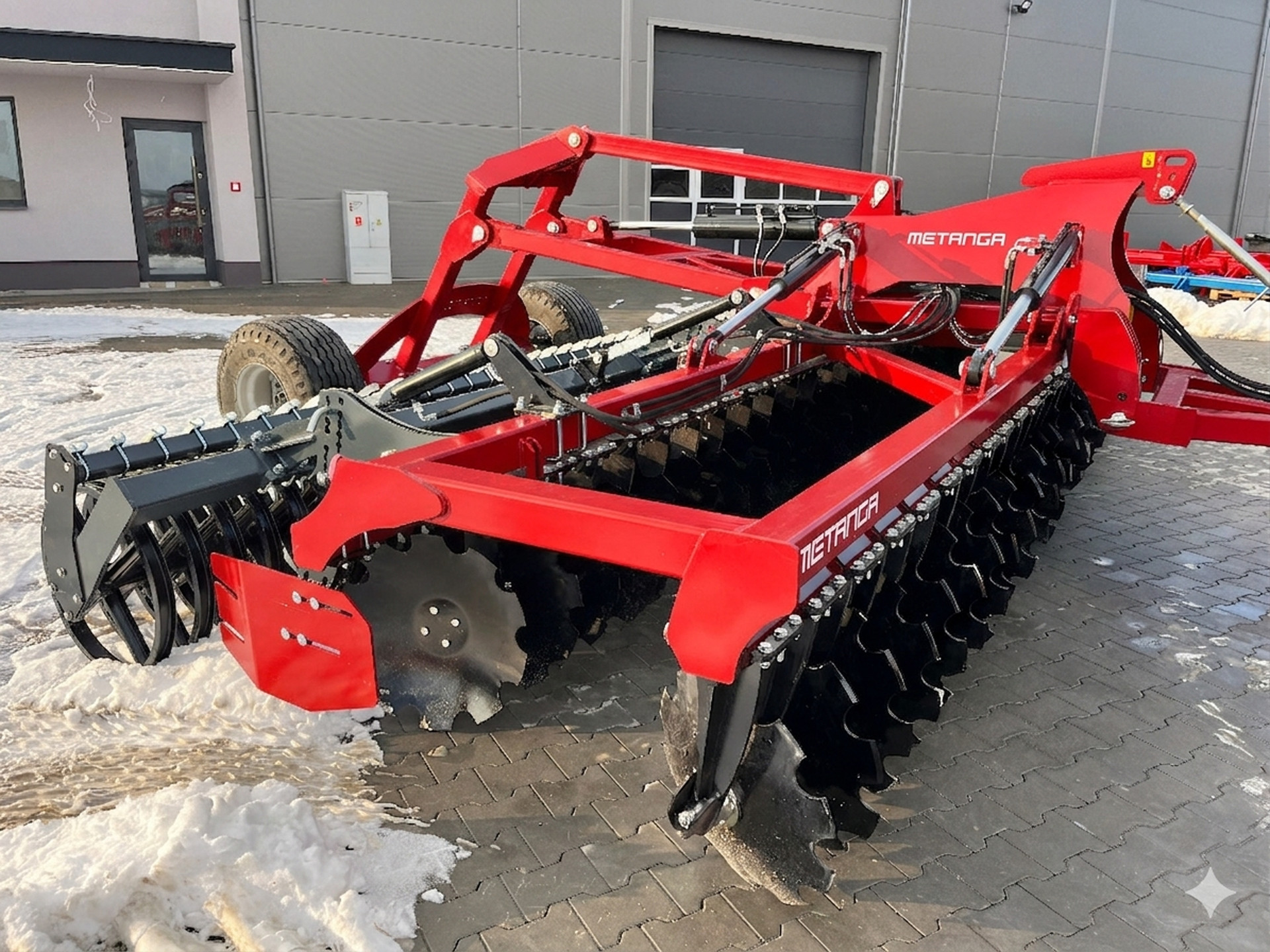

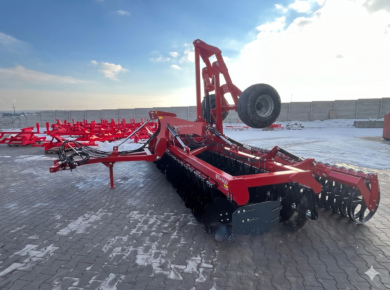

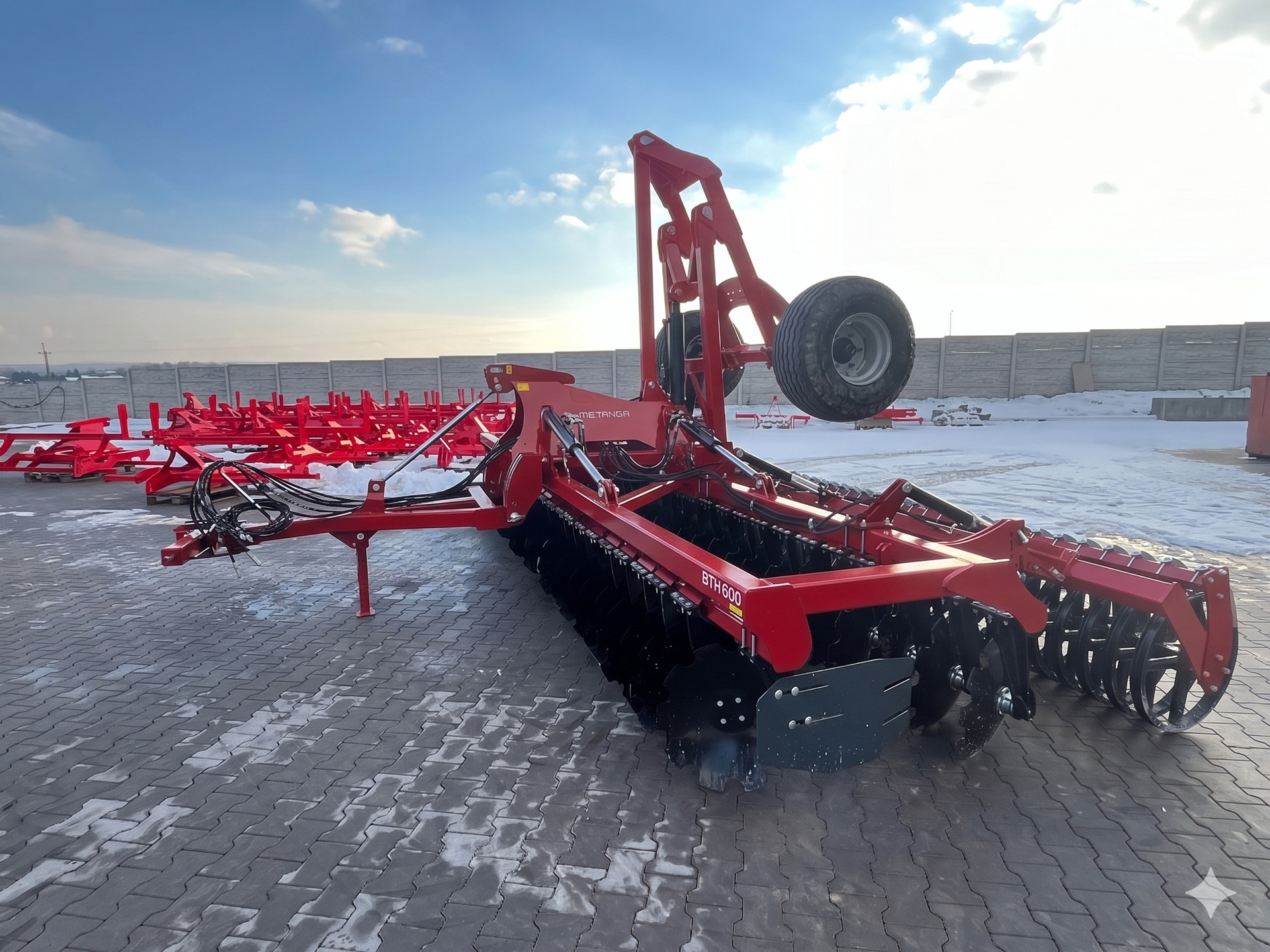

Hydraulically foldable disc harrow

Our hydraulically foldable disc harrow BTH is an excellent companion for working in difficult, residue-rich soils. Its safe operation on public roads is ensured by the ability to fold the frame using hydraulic cylinders.
WORKING
WIDTH (m) 		NUMBER
OF DISCS (pcs) 		POWER
REQUIREMENT (HP) 		WEIGHT*
(kg)
4,0 32 120-150 2200
4,5 36 130-160 2500
5,0 40 140-180 2800
5,5 44 160-190 3100
6,0 48 160-200 3500

* the stated weight applies to the machine in its standard configuration and may vary depending on the equipment

Basic equipment

  • two rows of Ø510 mm/Ø560 mm discs
  • 100 cm spacing between disc rows
  • maintenance-free or maintenance hubs to choose from
  • tube roller Ø500 mm
  • side screens with adjustable position
  • four hydraulic cylinders with overload valves
  • hydraulic locks
  • II/III cat. hitch pin
  • powder coating

Optional equipment

  • Ø610 mm discs
  • OFAS discs
  • side screens with adjustable position to follow the terrain
  • LED lighting
  • hydraulic roller adjustment
  • harrow row
  • ratchet connectors
  • trolley + shaft
  • knife roller
  • hydraulic drag
  • support wheels
  • mudguards
  • tillage rollers available as an option
